Summary:
A well-known machinery manufacturing enterprise has customized multiple silver gray hydraulic stations in our company for its gantry boring machine equipment. Due to its outstanding performance and beautiful appearance, it not only improves production efficiency but also enhances the overall visual effect of the workshop, receiving high praise from customers.
article directories[Hidden]

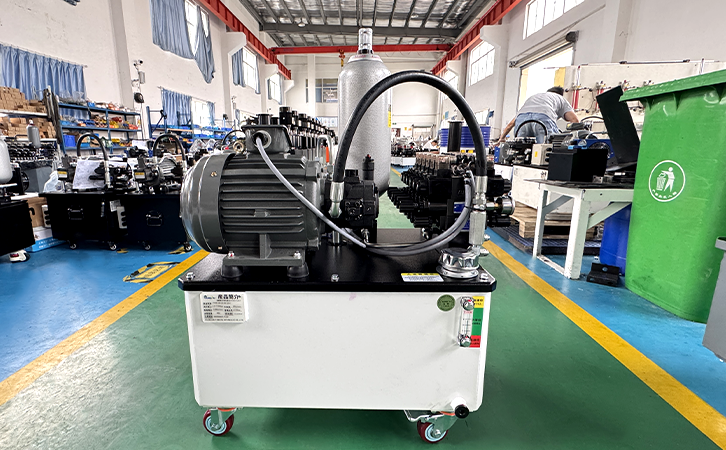

Introduction to Hydraulic Station

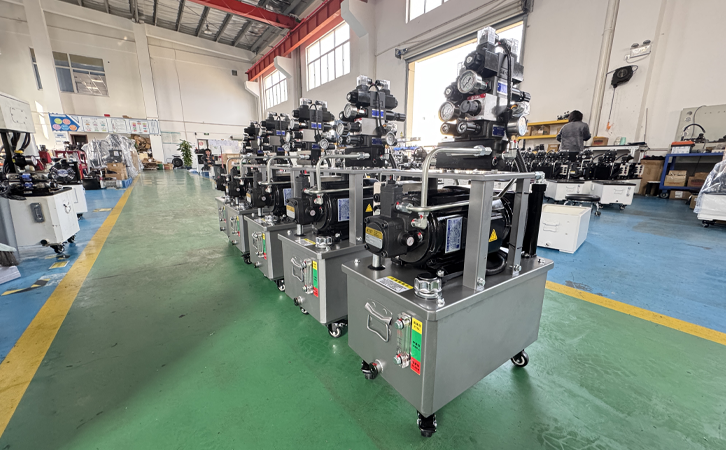

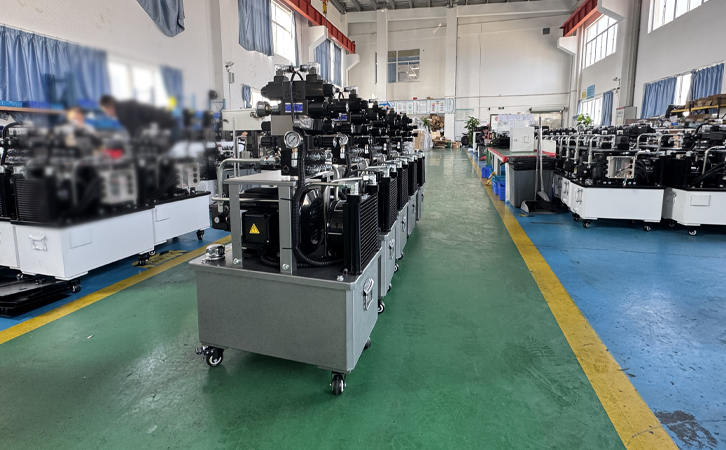

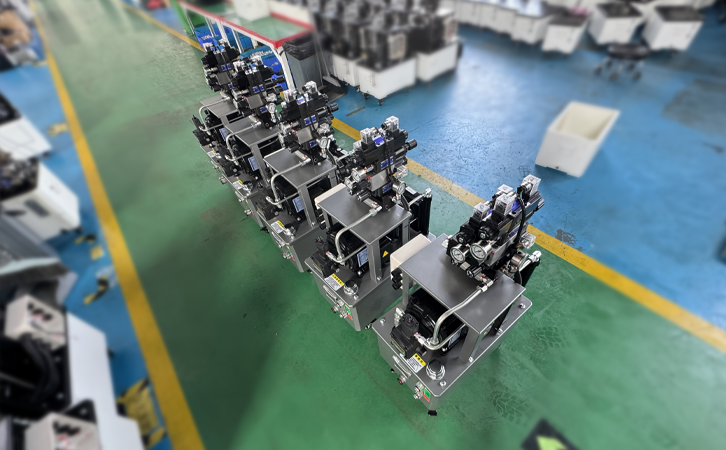

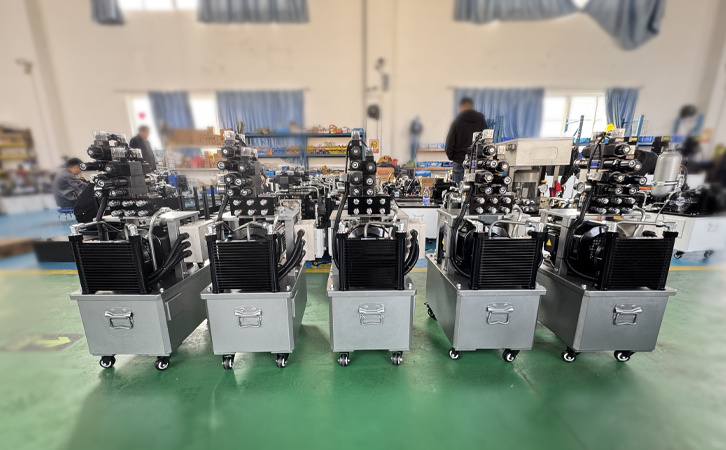

欢迎来到上海扬誉液压科技有限公司!我们专注于高品质液压站的设计、生产和销售,致力于为客户提供量身定制的液压解决方案。今天,我们向您介绍一款特别定制的Silver gray hydraulic station.This hydraulic station was originally a standard white hydraulic station, which has been color modified and modified according to customer needs to meet specific application requirements. Attached is the workshop photo album






Hydraulic station parameters
- Model:YYV20
- Colour: Silver gray
- Operating Pressure:1-8Mpa
- Spitting volume:8L/min
- Motor speed:1480/min
- Motor Power:1.5KW
- Fuel tank capacity:60L
Characteristics of hydraulic station
- Custom color:According to customer requirements, the standard white hydraulic station will be changed to silver gray, which is more in line with the customer's working environment and aesthetic needs.
- Efficiency and energy saving:采用高性能电机和优化的液压系统设计,确保在提供充足动力的同时实现节能减排。
- Stable and reliable:Made with well-known accessories and subjected to strict quality testing to ensure stability and reliability during long-term operation.
- Easy to operate:Equipped with an intuitive operating interface, it is convenient for users to quickly get started and use.
- Strong adaptability:Suitable for various types of machine tools, lathes, gantry boring machines, and equipment, it can meet the usage needs under different working conditions.
- Safety protection:Built in multiple security protection mechanisms effectively prevent issues such as overload and overheating, ensuring the safety of equipment and personnel.
- Convenient maintenance:Modular design facilitates daily maintenance and reduces repair costs.
Principle of hydraulic station
The working principle of a hydraulic station is based on Pascal's law, which states that the pressure exerted on a liquid in a closed container can be uniformly transmitted in all directions. The specific work process is as follows:
- Oil absorption process:The hydraulic pump sucks hydraulic oil from the oil tank.
- Boosting process:The hydraulic pump pressurizes the hydraulic oil to the required working pressure.
- Conveying process:The pressurized hydraulic oil is transported through pipelines to hydraulic actuators such as hydraulic cylinders and hydraulic motors.
- Executive process:Hydraulic actuators use the pressure of hydraulic oil to perform specific actions.
- Return oil process:The hydraulic oil after work returns to the oil tank through the return line, forming a closed-loop system.
Purpose of hydraulic station
- Machine tool lathe CNC:Provide stable hydraulic power for various machine tools and lathes to ensure machining accuracy and efficiency.
- Longmen boring machine:Suitable for large gantry boring machines, providing high power output to meet heavy-duty machining needs.
- Other industrial applicationsFor applications such as plastic molding machines and die-casting machines that require high-pressure and high flow hydraulic systems.

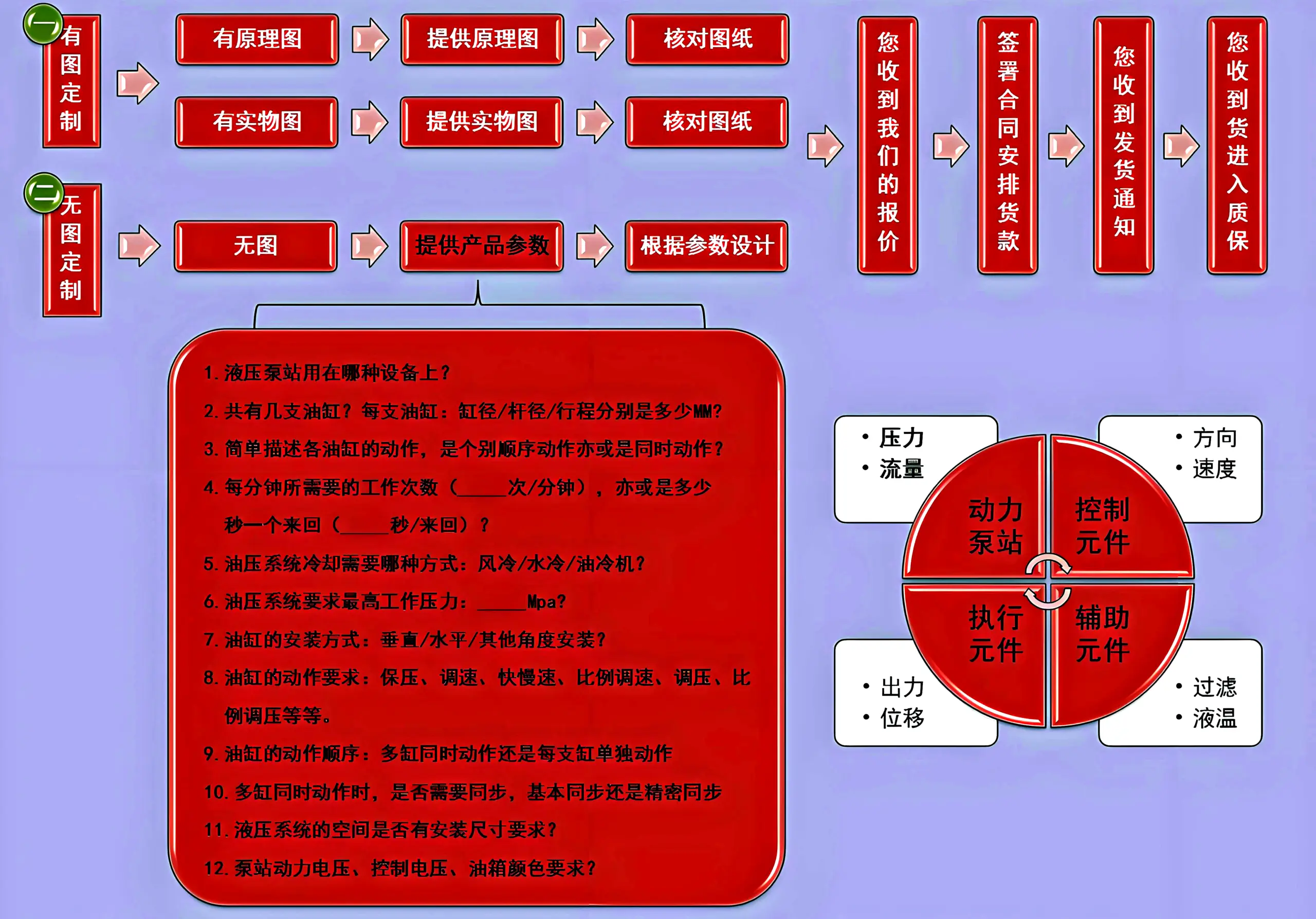

Yangyu Hydraulic Customization Process
- Requirement communication:The customer has specific requirements, including the color, appearance, circuit design, and accessory selection of the hydraulic station.
- Scheme design:Our professional engineers design customized hydraulic station solutions based on customer needs and provide detailed technical parameters and drawings.
- Sample making: Make samples according to the design plan for customer review and testing.
- Mass production: After the customer confirms that the sample is correct, mass production will be carried out.
- Quality inspection: Each hydraulic station will undergo strict quality inspection before leaving the factory to ensure stable and reliable performance.
- Delivery and installation: Deliver the customized hydraulic station to the customer's site, and provide professional installation guidance and technical support.
- After:Provide after-sales service, including technical support, regular maintenance, and parts supply, to ensure customers have worry free long-term use.
Case
A well-known machinery manufacturing enterprise has customized in our companyMultiple silver grey hydraulic stations,Used for its gantry boring machine equipment. Due to its outstanding performance and beautiful appearance, it not only improves production efficiency but also enhances the overall visual effect of the workshop, receiving high praise from customers.
Contact
If you are interested in our products or have any questions, please feel free to contact us:
- Tel::+86-400-019-6868
- E-mail:yangyu@yangyuyeya.com
- Address:Huaqiao Town, Kunshan City, Suzhou City, Jiangsu Province
Thank you for choosing Shanghai Yangyu Hydraulic Technology Co., Ltd. We will be dedicated to serving you!
