In modern industrial applications,hydraulic systemIt is indispensable and widely used in fields such as engineering machinery, aerospace, and automotive transportation due to its powerful power transmission capability and excellent precision control. So, what are the components of a complete hydraulic system?This article will provide an in-depth analysishydraulic systemThe core components help you fully understand this complex and sophisticated power transmission mechanism.

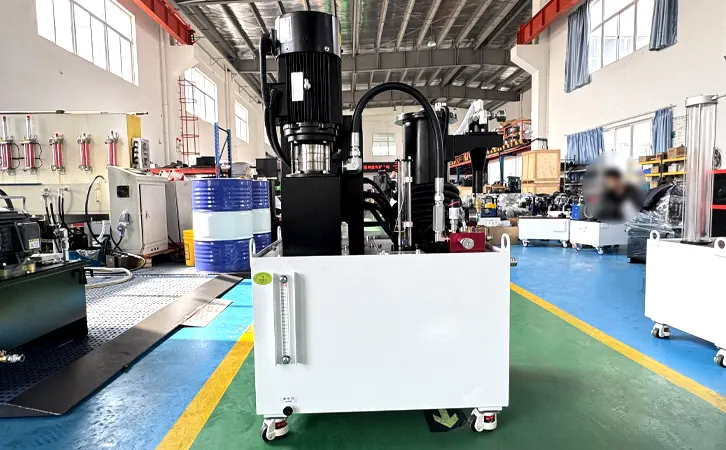

Hydraulic pump: the power source of hydraulic system

The hydraulic pump is the "heart" of the hydraulic system, responsible for converting mechanical energy into hydraulic energy and driving hydraulic oil to flow in the system.There are various types of hydraulic pumps, including gear pumps, vane pumps, and plunger pumps. Gear pumps have a simple structure, low cost, and are suitable for low-pressure applications; Blade pumps have high efficiency and are suitable for medium and low pressure systems; Piston pumps are known for their high pressure and large flow rate, and are widely used in applications that require high performance and reliability.

Hydraulic cylinder: key role of actuator

Hydraulic cylinders, also known as hydraulic actuators, are devices in hydraulic systems that convert hydraulic energy into mechanical energy.It achieves various forms of mechanical motion, such as pushing, pulling, lifting, and clamping, through the linear reciprocating motion of the piston. Hydraulic cylinders can be divided into single acting cylinders and double acting cylinders according to their structure and form of action. Single acting cylinders only provide thrust in one direction, while double acting cylinders can work in both directions.

Hydraulic motor: the executor of rotational motion

Corresponding to hydraulic cylinders, hydraulic motors are actuators in hydraulic systems that achieve rotational motion. They convert hydraulic energy into mechanical energy to drive rotation.This type of actuator is typically used to drive wheeled equipment, concrete mixers, and other devices. There are also various forms of hydraulic motors, among which gear motors, blade motors, and plunger motors are the most common, and the selection criteria are often related to the pressure and flow requirements in practical applications.

Control valve: precise regulation of fluid

Control valves play the role of the "central nervous system" in hydraulic systems, and their design determines the direction, pressure, and flow rate of fluids in the system.The most common control valves are directional control valves, flow control valves, and pressure control valves. Directional control valve is used to control the flow direction of hydraulic fluid; Flow control valves are used to regulate the liquid flow through various components of the system; The pressure control valve ensures that the system operates within a safe pressure range, avoiding damage or oil leakage caused by excessive pressure.

Hydraulic oil tank: storage and pressure balancing

The hydraulic oil tank is another important component of the system, its main function is to store hydraulic oil, and it also plays a role in dissipating heat, separating air, and settling impurities in the system. In design, the capacity of the oil tank is generally 3 to 5 times the flow rate of the hydraulic pump to ensure effective heat dissipation and settling time of the hydraulic oil, thereby extending the service life of the system.

Hydraulic pipeline: connecting the blood vessels of the system

Hydraulic pipelines include various hoses, hard pipes, and connectors, which are the "blood vessels" of hydraulic systems, responsible for transmitting hydraulic fluid and providing power to actuating components. The installation requirements for pipelines are strict, including considerations of pressure resistance, temperature resistance, vibration resistance, and corrosion resistance. At the same time, they should be as short and straight as possible to reduce energy loss.

Oil filter: the guardian of the protection system

Oil filters are crucial in hydraulic systems, as they are responsible for removing particles and impurities from hydraulic oil, maintaining its cleanliness, and thus extending the service life of hydraulic components. Filters at different stages are installed in different positions: the oil suction filter is installed in front of the oil pump to protect the pump from particle wear; The high-pressure filter is installed behind the pump and filters fine particles through small holes; The return oil filter prevents impurities from entering the fuel tank.

Sensors and Monitoring Devices: Intelligent Assurance

With the advancement of technology, modern hydraulic systems increasingly rely on sensors and monitoring devices to achieve precise control and fault warning. These sensors can monitor real-time parameters such as pressure, temperature, and flow rate of the system, and provide feedback to the central control system to help operators adjust the system in real time, ensuring its normal and efficient operation.

Attachment: Small Parts for Maintaining Efficient System Operation

In hydraulic systems, there are many seemingly inconspicuous but indispensable accessories such as seals, joints, and bolts. These small parts play an important role in the stability and sealing of the system. Especially for seals, their quality and lifespan are directly related to the efficiency and reliability of hydraulic systems.

Design considerations for hydraulic systems

Designing an efficient and reliable hydraulic system requires comprehensive consideration of multiple factors. Firstly, when selecting hydraulic oil, its viscosity, corrosiveness, oxidation characteristics, etc. should be comprehensively considered to adapt to the temperature and working environment of the system. Secondly, during system design, the position of each component should be reasonably configured to shorten the pipeline length and reduce energy loss. Finally, regular system maintenance and monitoring can effectively prevent system failures and damages.

Summarize

A complete hydraulic system consists of multiple core components, each with its own functions and working together to ultimately achieve the goals of power transmission, control, and execution.In practical applications, there is no fixed 'best solution', what is needed is the best match between the system and the application. Therefore, when selecting and using hydraulic systems, it is important to have a deep understanding of the functions and characteristics of each component in order to maximize efficiency and provide strong support for production and operations.
