Summary:
The spindle cutting cylinder is a component designed specifically for CNC (computer numerical control) machine tools and machining centers, mainly used to achieve fast and accurate loosening and locking operations of spindle cutting tools. This The booster cylinder combines the advantages of air pressure and hydraulic pressure. Through the principle of gas-liquid conversion, it drives a larger oil pressure output with a smaller air pressure, thereby achieving efficient cutting (i.e. tool release or locking) effect.
article directories[Hidden]

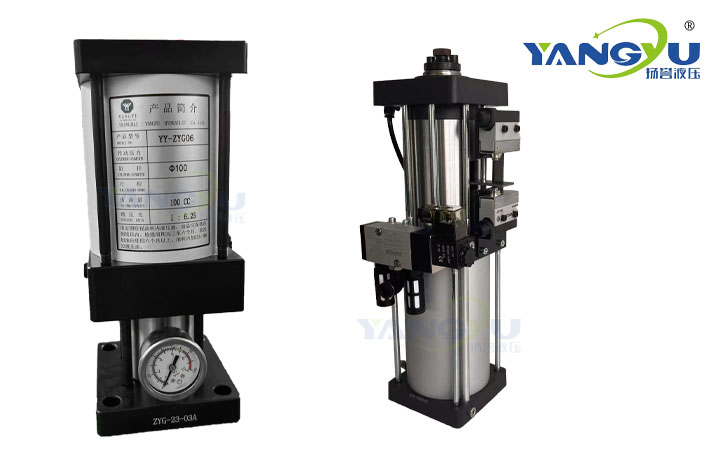

Product Overview:
The spindle cutting cylinder is a component designed specifically for CNC (computer numerical control) machine tools and machining centers, mainly used to achieve fast and accurate loosening and locking operations of spindle cutting tools. This The booster cylinder combines the advantages of air pressure and hydraulic pressure. Through the principle of gas-liquid conversion, it drives a larger oil pressure output with a smaller air pressure, thereby achieving efficient cutting (i.e. tool release or locking) effect.
Video Presentation:
Technical specifications:
- Output:6000kg. This means that the booster cylinder can provide up to 6 tons of thrust during operation, ensuring that even large or high hardness tools can be easily and stably locked and released, making it suitable for heavy-duty machining tasks.
- Working pressure：0.6-0.8MPa（即6-8巴）。这个气压范围是增压缸正常工作的压力，能够在确保快捷的同时，保持system的稳定运行，避免因压力过高或过低导致的效率降低或设备损坏。
- Trip: 13mm. The stroke refers to the linear movement distance of the booster cylinder piston in a complete action. A stroke of 13 millimeters is suitable for the loosening and locking needs of most standard tool holders, ensuring fast and accurate tool exchange.
Applicable locations:
- Used for spindle loosening knifeThis booster cylinder is a key component of the spindle tool automatic exchange system for processing equipment, CNC milling machines, drilling machines, and other equipment, especially suitable for automated production lines with frequent tool changes. By precise control, it can quickly release and lock the tools inside the spindle, improving machining efficiency and flexibility, reducing manual intervention, and ensuring machining accuracy and tool life.
Product features:
- Efficiency:Quick response and reduced tool replacement time.
- Stability:Gas liquid pressurization technology ensures stable operation and maintains high precision even during continuous use.
- Durability:The cylinder body is made of wear-resistant materials and treated with hard film to extend its service life.
- Easy to install:Compact structure, design considering compatibility with existing systems, easy to integrate and install.
- Simple maintenance:Designed with low failure rate and easy maintenance to reduce downtime.
In short, this 6000kg output, working pressure between 0.6-0.8MPa, and stroke of 13mm.Spindle cutting cylinder,It is an important tool in the field of modern CNC machining to improve production efficiency and ensure machining quality, widely applicable to environments that require high precision and fast automation processing.
