Summary:

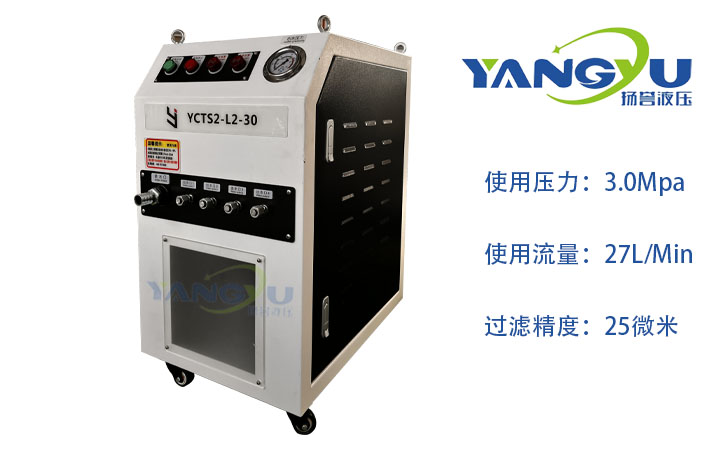

Self-priming high-pressure effluent &oil filter is a kind of filtration equipment that integrates self-priming function and high-pressure processing capacity. It is widely used in industrial fluid treatment systems, especially where different media such as water and oil need to be treated at the same time. Occasions. The characteristic of this type of filter is that it can automatically absorb fluid from the liquid storage tank and effectively filter it under high pressure to ensure that the cleanliness of the fluid meets the requirements of subsequent processes or equipment.
article directories[Hidden]
Self suction high-pressure water outlet&oil filterIt is a kind of filtration equipment that integrates self-priming function and high-pressure processing capacity. It is widely used in industrial fluid treatment systems, especially when different media such as water and oil need to be treated at the same time. The characteristic of this type of filter is that it can automatically absorb fluid from the liquid storage tank and effectively filter it under high pressure to ensure that the cleanliness of the fluid meets the requirements of subsequent processes or equipment. The following are some key characteristics and working principles of self-priming high-pressure effluent &oil filter：
Key features：
- Self-priming function: No need for external power suction, relying on internal mechanical design (such as pump structure) to extract fluid from the container on its own, which is easy to install and operate, especially in the absence of a continuous pressure source.
- High pressure treatment：设计用于承受高压力，通常可达到数兆帕（如5MPa或更高），适合需要高压传输或循环的系统，如液压系统、高压清洗设备等。
- Multifunctional filter: It can handle different media such as water and oil. It is usually equipped with special filter media, which can be paper, metal mesh, fabric or synthetic materials. Choose the appropriate filter element according to the type of medium and the filtration accuracy requirements.
- Backwash function: Some models are equipped with automatic backwash systems, which can trigger the cleaning program through the internal mechanical structure or external control unit without interrupting the workflow, and use high-pressure water or oil flow to reverse rinse the filter to remove blockages and extend the service life of the filter element.
- Quick filter: The filtration accuracy is 25 microns, which can meet the strict requirements of different applications for fluid cleanliness.
Working principle:
- Inhalation stage: At startup, the self-priming device (such as a pump) in the filter starts to work, and through the negative pressure effect generated internally, fluid is drawn from the liquid storage tank into the filter.
- Filtering stage: The inhaled fluid passes through the pre-filter to initially remove large particles of impurities, and then through the filter element for deep filtration to filter out tiny particles and suspended solids.
- High voltage output: The filtered clean fluid is transported to the system under high pressure and is used in various high-pressure applications, such as high-pressure injection, hydraulic drive, cooling cycle, etc.
- Backwash and maintenance: When the pressure difference between the front and rear of the filter reaches a preset value or at a set time, the backwash program is automatically triggered. By changing the flow direction of the fluid, the high-pressure fluid is used to reverse rinse the filter to remove attached impurities and maintain filtration efficiency.
Self-priming high-pressure effluent & oil filter is widely used in machinery manufacturing, chemical industry, petroleum, electric power, environmental protection and other fields because of its high degree of automation, strong adaptability and easy maintenance. It is one of the key equipment to ensure the fast and stable operation of fluid systems.
